Concrete Pump Truck - Foundation Construction Solution

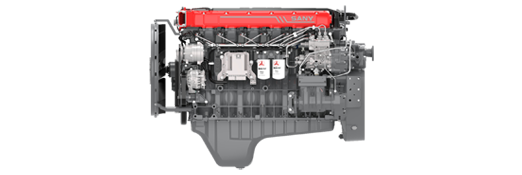

Sanyi Yitz National VI engine, fully verified by five highs, strong power and low fuel consumption, Sino-German ingenuity; Customized 318 luxury cab, more than 20 intelligent and humanized configurations; The integrated design of chassis and bodywork, the vehicle and axle load are not overweight, and the national roads are unimpeded; The chassis configuration engineering working conditions are customized, high off the ground, and strong ability to get out of trouble.

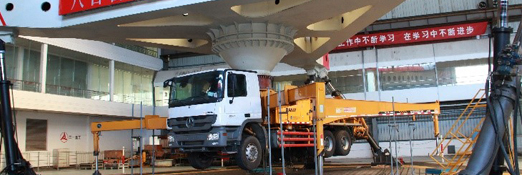

Finite element analysis of boom under complex working conditions, 500,000 cubic meters or more than 8 years of use without cracking; The fatigue test field of the whole machine, the fatigue test bench of the six-degree-of-freedom structural parts, the fatigue test of more than 6 million times, and the structure is reliable.

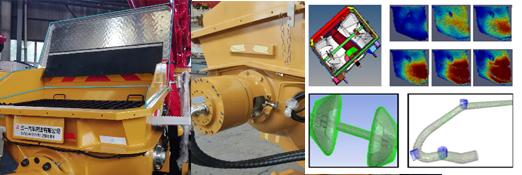

Large displacement, high pressure, no picking, industry pumping benchmark; Large-volume streamlined hopper, based on the flow field simulation of machine-made sand concrete, no material accumulation, no air absorption; Large bore swing cylinder, strong reversing, material difference does not block the pipe, and the pumping force is stronger; Adaptive pumping technology, one-key high and low pressure switching, greatly reducing the probability of pipe blocking; Digital main cylinder, stroke utilization up to 99%, precise reversal.

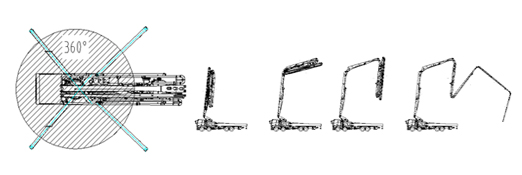

The boom can be ± 360° all-round flat construction, with a wide range of construction; 6RZR boom folding method, boom retract quickly; The minimum deployment height of the boom is low, and the site adaptability is strong; The stub boom can be constructed with a 180° reverse hook, and the fabric is flexible.

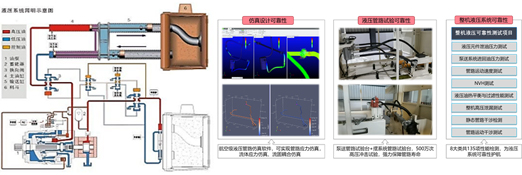

Rexroth oil pump, HAWE multi-way valve, hydraulic system configuration is of good quality and excellent performance; Open hydraulic system, low oil temperature, low oil pressure, high oil cleanliness, long life of hydraulic components.

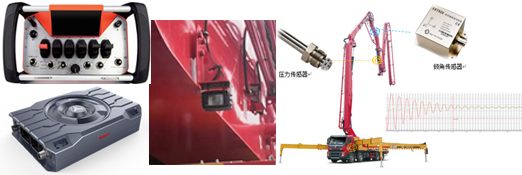

The new 2.5 generation remote control, super SYMC controller, SYLD plus display, and Sany's self-developed control system have been fully upgraded, and the performance has been greatly improved; The fourth-generation composite shock absorption system, full boom shock absorption, good construction stability, and rapid control of the end amplitude within 3 seconds± within 200mm; Boom rotation smoothness control technology + rotary spool flow optimization, boom swing reduction by 90%, left and right swing attenuation cycle from 1 minute to 10 seconds; It is equipped with reversing image and reversing radar as standard, and has functions such as boom anti-interference, remote control remote start, and one-key selection in plateau areas.

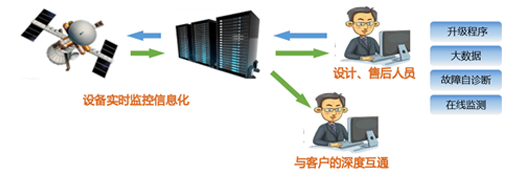

Sany Customer Cloud: construction management, value-added services, shopping malls and communities, online services; Pump recitation cloud platform: big data monitoring vehicle performance, intelligent evaluation and reminder maintenance, fault self-diagnosis, pump truck health examination monthly report.
